Recently, my son and I updated our effort to compare the efficiency and “greeness” of a Tesla Model S and a standard, non-plugin Prius. Our latest writeup follows along with the underlying data.
When there is mention of green and efficient cars, Tesla comes immediately to mind. Elon Musk has been beating the drum to promote Tesla’s greenness and efficiency for years. So how green and efficient is a Tesla compared to say a standard, non-plugin, Toyota Prius? The only way to find is to do an experiment.
I drive a 2017 Tesla Model S 85D. My son drives a standard 2015 Toyota Prius. We both drive similar distances, on freeways and surface streets, in the area around Pasadena, California, so comparing the performance of the two cars should be an ideal experiment. Even though gasoline is the only source of primary energy for the Prius, it sets a high standard for the Tesla because like the Tesla it converts some of the car’s kinetic energy to electrical energy stored in its batteries, rather than losing it all to heat as occurs in non-hybrid internal combustion engine (ICE) automobiles. On the other hand, the fact that we did our experiment during the spring of 2018 in Southern California favors the Tesla because no cabin heating was required. Using electrical energy is a very inefficient way to heat the inside of a car. In comparison, ICEs can heat the cabin at almost no cost. A typical ICE turns about 25% of the energy in the gasoline into the kinetic energy of the car, the rest is lost as heat. However, some of that heat can be captured to warm the car with essentially no added energy expenditure. In comparison, a Tesla has to draw on its batteries to produce heat. For this reason, had we done our experiment in Chicago in the winter, the results would have been much less favorable for Tesla
Because the two cars use different fuels a conversion is required to make a direct comparison. Because a gallon of gas contains the energy equivalent of 34.4 kilowatt hours (KWH) of electricity, I use 34.4 as the conversion factor.
With regard to driving habits, neither of us is an aggressive driver who performs jackrabbit starts or massive accelerations. In my son’s case, the Prius does not make that possible. In my case, I am 69 nears old and drive conservatively despite the fact that the Tesla has muscle car potential.

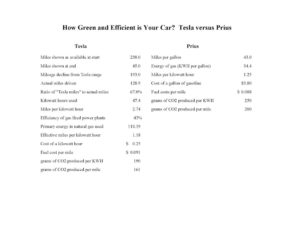

The experiment was run over about two months during which the Tesla was recharged 15 times. All of the results are summarized in the exhibit below. Before turning to comparison of the cars, the first interesting thing we discovered is that the actual range of the Tesla is significantly less than the “estimated” range shown when the car is charged. In the experiment, the Tesla was always charged to a range of 238 miles (less than the maximum to protect the batteries) and was driven until the range fell to an average of 45 miles. If the range estimate was accurate, the average distance traveled would have been 193 miles, but in fact the average distance traveled was 128.9 miles – only 67% of the estimated range. And this is without using the heater or the air conditioner to any meaningful extent. The finding makes it clear that owners of electric cars need to analyze their range carefully and not rely on stated figures lest they be trapped on a lonely highway. It also calls into question how the range of 238 miles was estimated in the first place.
Moving on to the comparison, let’s start with the more familiar Prius. As shown in the exhibit, the Prius averaged 43 miles per gallon. Dividing by 34.4 KWH per gallon leads to mileage of 1.25 miles per KWH. In comparison, the Tesla used an average 47.4 KWH to travel the 128.9 miles giving a mileage of 2.74 miles per KWH – more than twice that of the Prius. But there is a catch. Electricity is not a primary source of energy. It has to be produced from something else. For now, I assume that the source of electricity is a natural gas power plant (more on this later). Efficient power plants turn about 43% of the energy in the natural gas into electricity. If this 43% efficiency ratio is applied to the Tesla, the effective kilowatt hours of natural gas energy used rises to 110.2, so that the effective mileage drops to 1.18 miles per KWH – less than that of the Prius. Remember, for every gallon of primary energy gasoline burned by an ICE car only about 25% is converted to kinetic energy. However, that this loss is already accounted for in the miles per gallon number. Therefore, to compare apples to apples, account must be taken of the energy loss at the power plant when primary energy (natural gas) is converted to electricity.
From the driver perspective, the bottom line of efficiency is fuel cost per mile. That depends, of course, on the costs of unleaded gasoline and electricity. Currently, the cost of gas is about $3.75 per gallon. Estimating the cost of electricity is more complicated because there is tiered electricity pricing in California. I assume that Tesla owners pay the mid-tier price of approximately $0.35 per KWH. Based on these assumptions, the fuel cost per mile comes to 8.8 cents for the Prius compared to 12.8 cent for the Tesla. In calculating the number for Tesla, the actual miles per kilowatt hour, not the effective miles per kilowatt hour, is used because the energy loss in generation is reflected in the price of electricity.
Turning to a comparison of greenness, Tesla has an advantage. To produce a KWH of energy from natural gas, Edison emits 190 grams of CO2. To produce a KWH of energy from gasoline, the Prius emits 250 grams. (Natural gas burns cleaner than gasoline.) Consequently, the Tesla emits 161 grams per mile compared to 200 grams for the Prius, making Tesla the greener car.
If I drop the assumption that the electricity is generated from burning natural gas, the Tesla sprints ahead on the greenness front. In the limit, if all electricity is generated from non-carbon sources such as solar, wind and nuclear, then the Tesla does not produce any CO2 or other environmental pollution at all. That is the big potential of electric cars. But it all depends on how the electricity is generated.
Although switching to non-carbon methods of generating electricity makes the Tesla more green than the Prius, it does not necessarily make it more efficient. The electricity must still be generated from some primary source. Depending on the efficiency of that generation process, using gasoline could be both more efficient (in terms of the amount of primary energy required to move the car one mile) and less costly per mile.
The bottom line is as follows. If natural gas is used to generate electricity, then the Prius edges out the Tesla in terms of efficiency – both in terms of primary energy used and fuel cost per mile. To be fair, this is probably due in large part to the fact that the Tesla is both larger and faster. In terms of greenness, the Tesla comes out on top. Furthermore, as non-carbon sources of electricity generation become more common, the Tesla greenness gap will widen.
In closing, it should be noted that there are several factors the comparison has ignored. For instance, the analysis does not take account of the impact of transporting the gas or electricity. In the case of electricity, high voltage lines are a convenient and efficient way of moving power. However, the energy loss in charging a Tesla’s batteries can be 10% or more depending on the voltage used at the charger. The analysis also ignores the energy requirements and environmental impact of building the cars and disposing of the waste at the end of the car’s life. Battery powered cars require a good deal more energy to build and disposal of the batteries is an environmental challenge.
